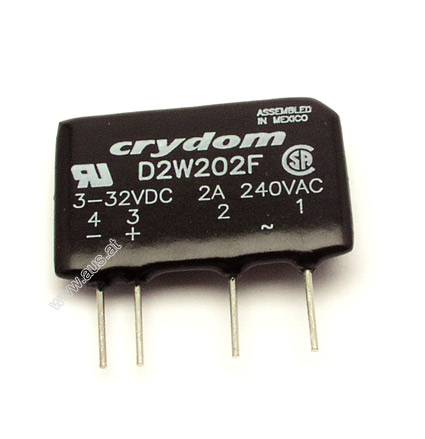

Opto Relay N047 Power Supply for Novo Dart Tournament

for Novo Dart Tournament lighting.

Property: Value
Brand: Sensata / Crydom
Max. load current: 2 A
Mounting type: PCB mounting
Max. load voltage: 280 V
Min. load voltage: 24 V AC/DC
Min. control voltage: 3 V dc
Max. control voltage: 32 V dc
Switching type: Zero-cross
Control voltage range: 3 → 32 Vdc
Min. load current: 0.06 A
Connection type: PCB pin
Output circuit: Triac
Series: D2W
Load voltage range: 24 → 280V ac
Max. turn-on time: 1/2 cycle
Dimensions: 43.2 x 11.9 x 29.9mm
Standards met: CE, CSA, cURus
Operating temperature range: -30 → +80°C
Off-state leakage current: 8 mA rms
Min. operating temperature: -30°C
Capacitance: 10pF
Max. operating temperature: +80°C
Special features: DC control, internal snubber network

Dimensions:
Length: 43.2mm
Depth: 11.9mm
Height: 29.9mm
